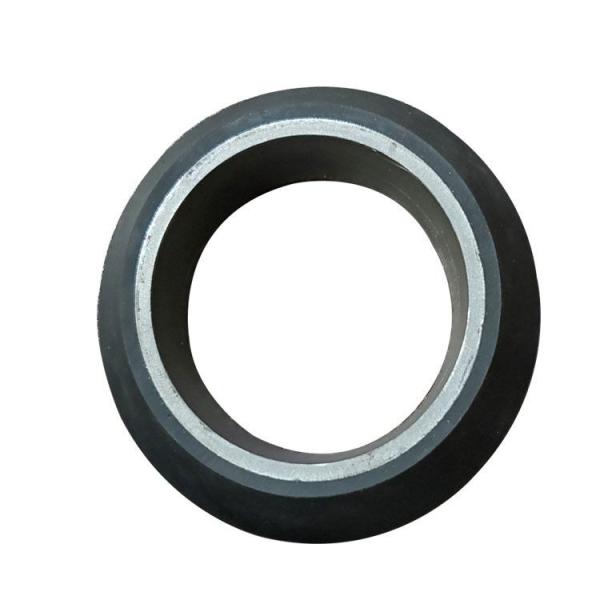

TA Style Rubber Oilfield Swab Cups Aluminum or Steel Core Swab Cups 2-3/8" 2-7/8" 3-1/2"
TA is a medium load Swab Cup built around a steel or aluminum bushing for use in most sizes of tubing or drill pipe.
| Nom. OD (inch) | Core and Description | Cup OD | Cup ID |
| 2-3/8" ( 2" ) | Aluminum Core Swab Cup | 1.990" | 1.120" |
| 2-3/8" ( 2" ) | Steel Core Swab Cup | 1.990" | 1.120" |
| 2-3/8" ( 2" ) | Aluminum Core Undersize Swab Cup | 1.945" | 1.120" |
| 2-3/8" ( 2" ) | Steel Core Undersize Swab Cup | 1.945" | 1.120" |
| 2-7/8" ( 2-1/2" ) | Aluminum Core Undersize Swab Cup | 2.375" | 1.334" |
| 2-7/8" ( 2-1/2" ) | Steel Core Undersize Swab Cup | 2.375" | 1.334" |
| 2-7/8" ( 2-1/2" ) | Aluminum Core Swab Cup | | 1.375" |
| 2-7/8" ( 2-1/2" ) | Steel Core Swab Cup | | 1.375" |
| 3-1/2" ( 3" ) | Aluminum Core Swab Cup | 2.940" | 1.370" |
| 3-1/2" ( 3" ) | Steel Core Swab Cup | 2.940" | 1.370" |
Available types of Swab cups:
TA style: TA is a medium load Swab Cup built around a steel or aluminum bushing for use in most sizes of tubing or drill pipe. When under load, it will compress to form a solid rubber mass for maximum lifting capacity and minimum wear. Manufactured from a newly developed rubber compound, these cups provide our customers with a high quality North American product. Our special Frac Fluid compound is developed for the ultimate in durability and performance. These Frac Swab Cups are designed to perform under the toughest conditions.
MV style: Shanghai Qinuo offers the popular Guiberson* profile MV Swab Cup in both nitrile and frac fluid rubber compound. The cup has either an aluminum or steel bushing with multiple upturned lips which allows it to pass through tight spots and control the amount of load. It is very efficient in fluid with suspended sand.
V style: Shanghai Qinuo carries the V Series Swab Cup in a light duty and heavy duty all rubber cup that is suited for use in fluids with high concentrations of suspended sand. The upturned lips pass easily through tight spots and will invert to dump excessive loads. The number of cups used will vary with conditions.
Our special Frac Fluid compound has excellent abrasion resistance high tensile strength and outstanding resistance to chemical attack.
TUF style: The design of the GE-TUF cup, with its internal metal reinforcement which maintains the shape of the cup, makes this an excellent choice for deep hot wells or rough and corroded tubing and casing. Strong enough for heavy loads, its flexability also allows it to work in light load situations.
NUF style: The GE-NUF is a heavy load all rubber cup that provides maximum lifting capacity. Bonded to either standard steel or aluminum bushings, and available in a wide range of sizes, this cup is a good choice for deep well applications. This cup is designed for high performance and heavy loads. Made of our special Frac Fluid compound, it will perform under the toughest conditions.
| Part Name | MV Style, TA style, TUF style, NUF style and V style |
| Environment | oil, gas, gas condensate |
| Available Material | FKM, , HNBR and nitrile rubber with or without Brass or Steel |
Application environment: Type MV types are recommended for deep, heavy duty jobs as well as medium load work.
Why Choose Our Top-Quality Swab cups?
We understand that no matter what industry you’re in, one thing remains the same: You need top-quality products to ensure the safety of your people, the longevity of your equipment and the quality of your product.
If you have to delay operations due to any material defects, it can place a huge financial burden on your business. For example, not being able to operate an oil well for a day can run into the tens of thousands of dollars in costs. Similarly, if you’re in the agricultural business, postponing anything from tilling and planting to harvesting simply isn’t an option, as it will impact the product.
That’s why we always look at things from our clients’ perspective. We always appreciate that having top-quality products delivered in a timely manner isn’t simply an option: It’s a must.
Welcome to contact us for more information about the swab cups.
